MAG524W3 Features
Dimensions
Width/depth/height, mm 115x115x28
Weight, g 170
Hardware
Chipset Amlogic S905X2
Processor Quad-core ARM Cortex-A53, 1,900 MHz
Performance 18,400 DMIPS
RAM 1 GB DDR3
Flash memory 4 GB eMMC
Software
Operating system Linux 4.9
DRM option Upon request
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
Interfaces

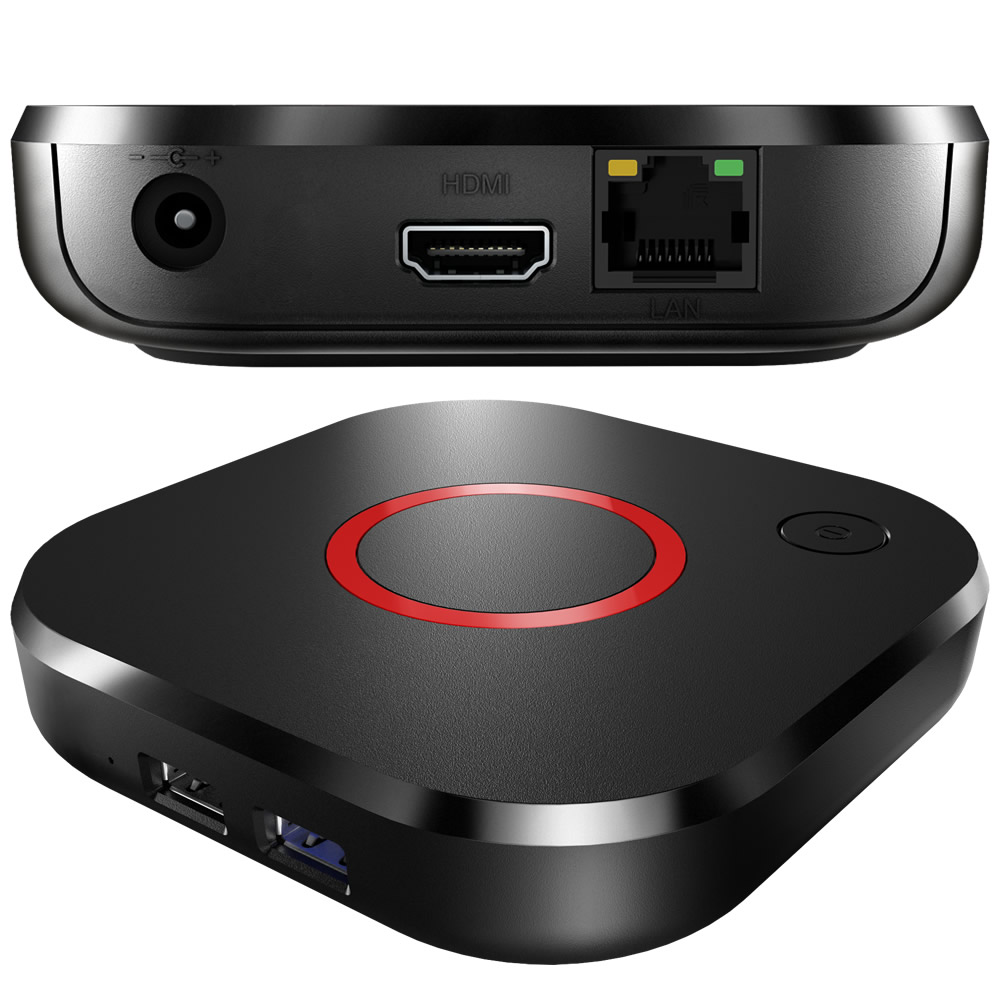

HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1, built-in 2T2R ac Wi-Fi module
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video modes 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video сodecs H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning
Playlist formats M3U, M3U8, PLS, CUE
Comes With

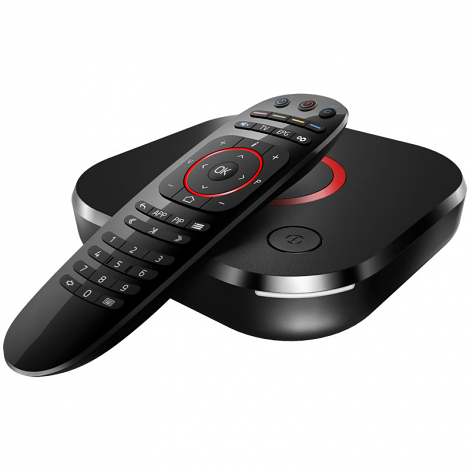

A MAG524w3 set-top box, user manual, HDMI cable, 12V 1A power adapter, remote control, 2x AAA batteries, packaging
