MAG500A Specifications:
Dimensions
Width/depth/height, mm 120x78x21
Weight, g 110
Hardware
Chipset Amlogic S905X2
Processor Quad-core ARM Cortex A-53, 1,900 MHz
Performance 18,400 DMIPS
RAM 2 GB DDR3
Flash memory 16 GB eMMC
Software
Operating system Android 9.0
DRM option Widevine L1, Microsoft PlayReady SL2000
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or full replacement is available
Interfaces
HDMI 2.1, Ethernet 100 Mbps, 1 × USB 2.0, 1 × USB 3.0, Bluetooth 5.0, built-in 2T2R ac Wi-Fi module
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs MP3, AAC, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mix, Dolby Digital Plus™
Audio formats MP3, OGG, WAV, AAC
Video modes 4Kx2K, 1080i/p, 720p, 576i/p, 480i/p
Video сodecs H.265/HEVC Main/Main10 profile, AVC/H.264 (MPEG-4 Part 10), MPEG-4, MPEG-2, MPEG-1
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, RM
Image formats JPEG, PNG, BMP, GIF
Subtitles SRT, SSA/ASS, TTXT, WEBVTT
Playlist formats M3U, M3U8, PLS
Comes with:

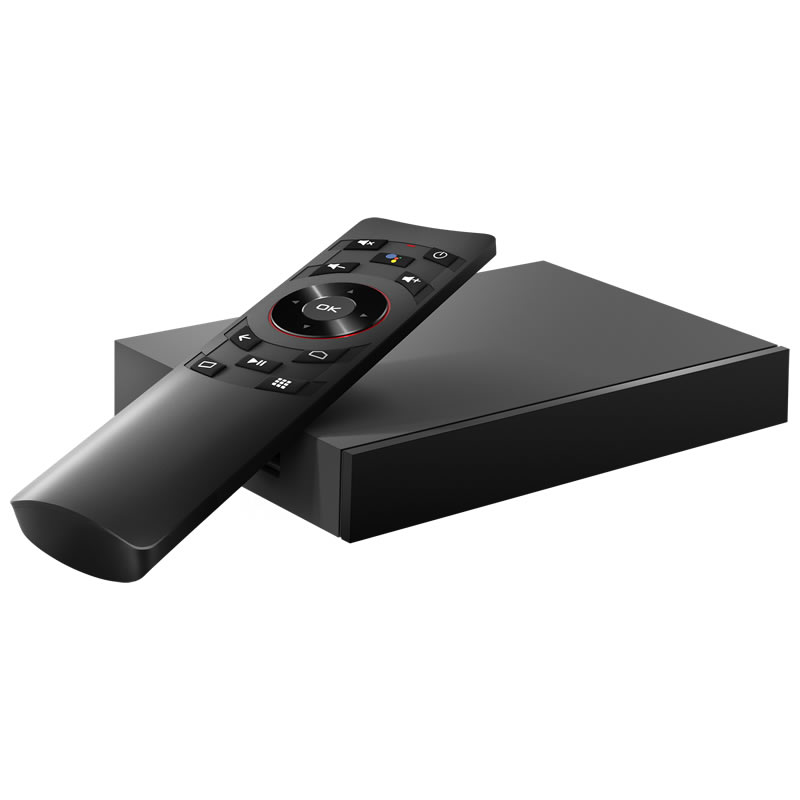

A MAG500A set-top box, a user manual, an HDMI cable, a 5V 2A power adapter, a remote control, two AAA batteries, packaging
