Infomir MAG424 Features
Dimensions
Width/depth/height, (mm) 115x115x28
Weight, g 180
Hardware
Chipset Hi3798MV200
Processor ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance 15 000 DMIPS
RAM 1 GB
Flash memory 8 GB eMMC
Software
Operating system Linux 4.4.35
Middleware supported Ministra TV platform version 5.4.0 or higher
Interfaces

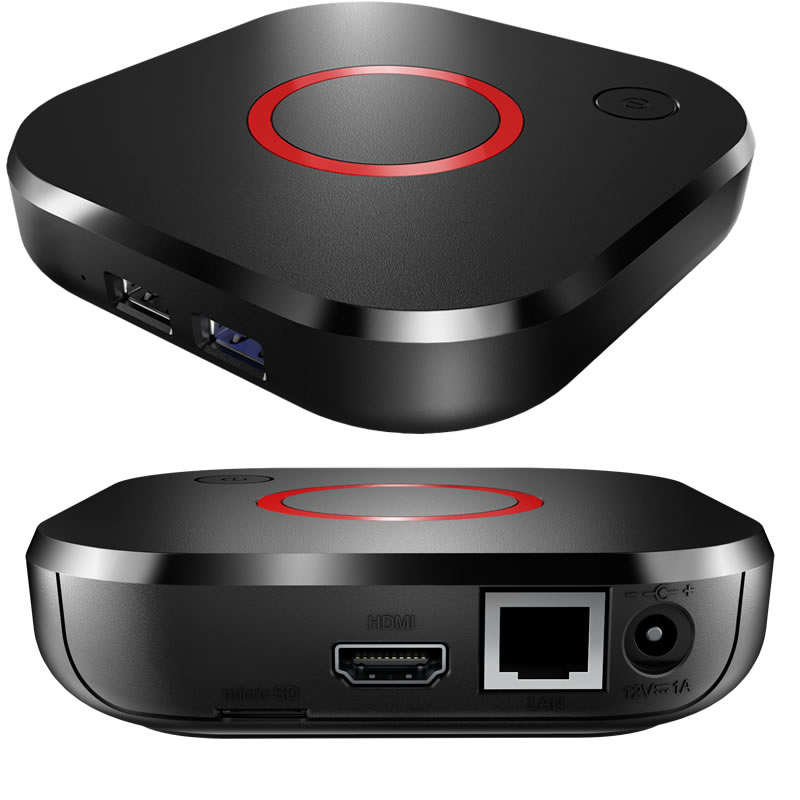

HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Bluetooth 3.0, 4.1, MicroSD
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption
Playlist formats M3U, M3U8, PLS, CUE
Comes with

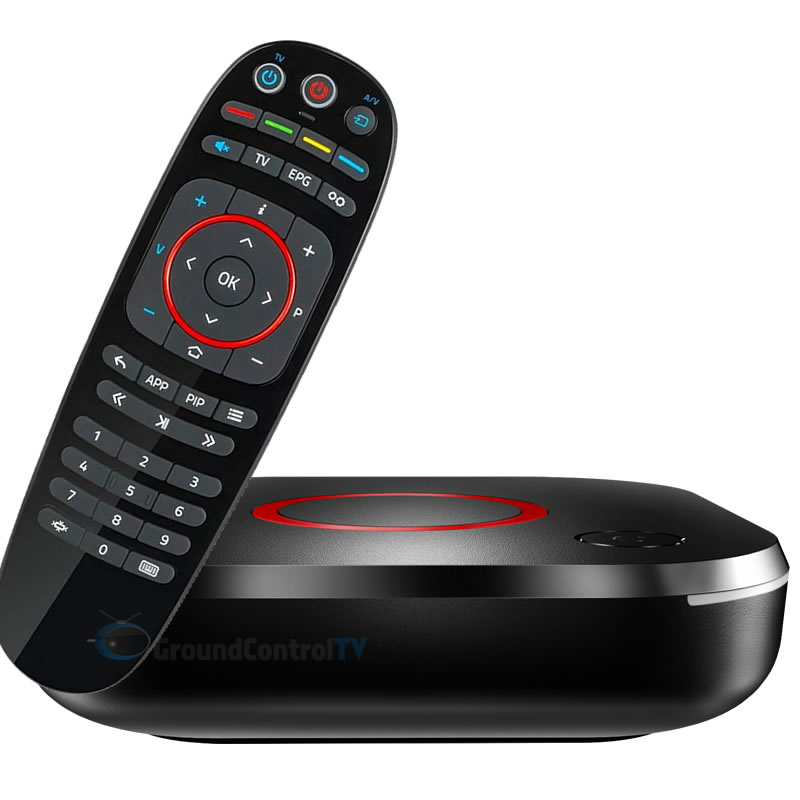

MAG424w3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging, 1 Year Warranty
