The set-top box plays the HEVC-compressed files. This means the network load will be lower, even when delivering high-quality content.
The set-top box plays advanced 2D and 3D graphics with OpenGL ES 2.0 support.
Modern high-performance processor on the chipset BCM75839 and 512MB RAM is good enough to playback the high-quality video.
The audio output S/PDIF (optional) allows connecting the multichannel High-End system to the set-top box. HDMI 1.4b provides the highest quality of sound and image.
Specifications:
Dimensions
Width/depth/height, (mm) 132x87x26
Weight, g 144
Hardware
Chipset BCM75839
Processor MIPS 4KE Dual Core CPU 750Mhz
Perfomance 2000 DMIPS
RAM 512 MB
Flash memory 512 Mb
Software
Operating system Linux 3.3
Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported Ministra multiscreen TV platform
Interfaces
Audio output S/PDIF (optional), HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB 2.0х2, Wi-Fi b/g/n 1x1
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP,RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)
Audio formats MP3, MPA, M4A, WMA, Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, PAL, NTSC
Video сodecs MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, PGS, SRT, ASS, SUB
Playlist formats M3U
Standard set includes

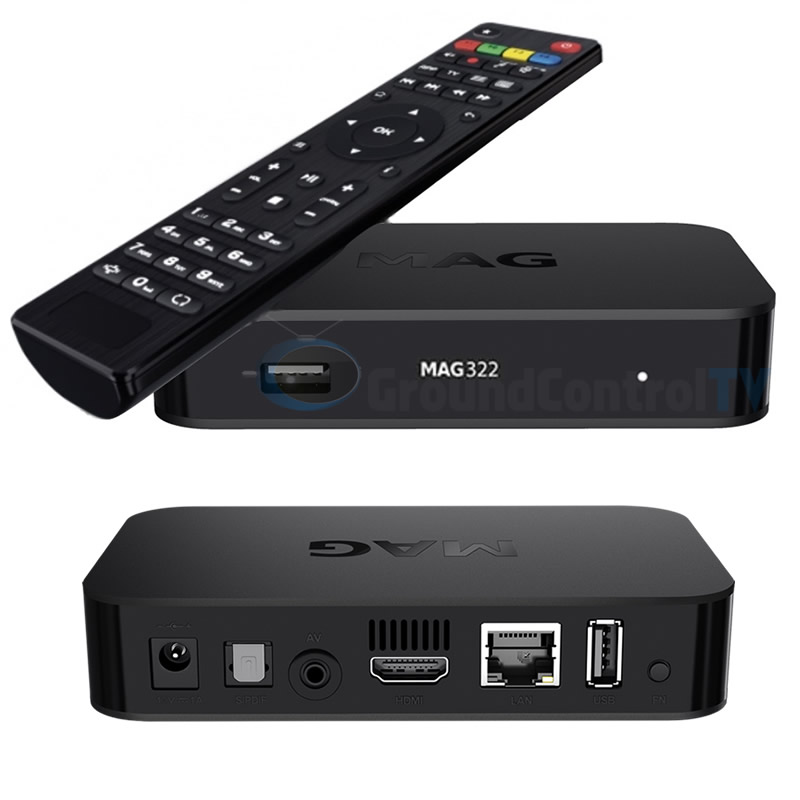

MAG322 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
Modified versions
MAG322
