EMP Centauri 8x1 Diseqc

EMP-Centauri Ltd. is one of the largest European producers of multi-switches, coaxial switches and related accessories for reception and distribution of satellite TV signals. Their highly skilled development staff builds on more than ten year tradition of being in satellite business. Due to unique technology and design of their products you can enjoy quality reception for reasonable price.

EMP-Centauri products are manufactured from the latest components on the state-of-the-art SMD automatic production line and the company processes are ISO 9001 certified.

WARRANTY: EMP-Centauri guarantees its products will be free from defects in material and workmanship under conditions of normal use. If any of the EMP-Centauri products is found to be defective in two years from the manufacture date which is legibly marked on the product, EMP-Centauri will repair or replace it. This warranty however does not apply to products which have been modified or disassembled by the buyer after delivery. EMP-Centauri reserves the right to make changes in design without prior notice.

Beware of unauthorized dealers selling cloned EMP switches.

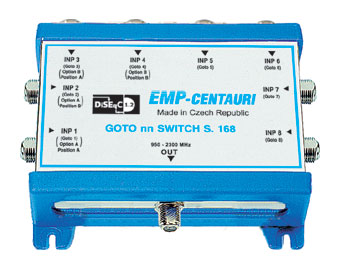

Model: S. 168 (8 in - 1 Out)

8in/1out switch designed for direct connection of up to 8 SAT IF inputs to one receiver. Inputs are selected by DiSEqC 1.2 command "Goto nn" (6B). Inputs 1 to 4 are selectable also by command "Write N0" (38), which makes the unit compatible with standard DiSEqC 4-input switching. Short-circuit protected. The unit is to be used with a satellite receiver enabling to set-up motor position number.

Example: 61.5+82+91+97+110+119+121+148 (Any 8 Satellites to 1 FTA Receiver)

Important Notes:

We have only tested this switch for FTA receivers.
We have not tested this switch with Dish Pro LNBFs. (Any LNBFs with built-in switch may not work.)
This switch must be installed indoor (If you are planning to use this switch outdoor then it MUST be installed in proper housing, so water won't get in. Please note that warranty is void if damaged by water.)
When connecting/disconnecting receivers, you MUST unplug the receivers, otherwise switch can be shorted.
Contact us with your desired results (setup) and we can make proper diagrams for your application.

Specifications of S. 168
Frequency Range	950-2300 MHz
Control	DiSEqC command “Goto nn” & “Write N0” (inputs 1-4)
Insertion Loss	5 dB avg.
Isolation	30 dB avg.
LNB current	max. 400 mA
Current consumption	max. 50 mA
Dimensions (w,d,h [cm])	13.6 x 10.4 x 3.3
Temperature range	–25°C - +60 °C

Details


SKU	EMP8X1
Price:	CA$39.99
