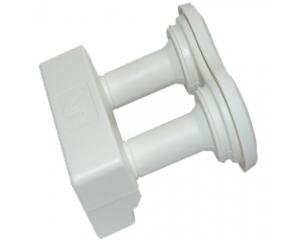

Input Frequency Range |
Low Band : 10.7 ~ 11.7 GHz |
|
High Band : 11.7 ~ 12.75 GHz |
|
|
|
|
Output Frequency Range |
Low Band : 950 ~ 1950 MHz |
|
High Band : 1100 ~ 2150 MHz |
|
|
|
|
L.O. Frequency |
Low Band : 9.75 GHz |
|
High Band : 10.60 GHz |
|
|
|
|
L.O. Frequency Stability |
+/-1 MHz (Max)@ Room Temp. |
|
|
|
|
Local Oscillator Frequency Phase Noise |
-60dBc/Hz @ 1KHz (Max.) |
|
-85dBc/Hz @ 10KHz (Max.) |
|
-105dBc/Hz @ 100KHz (Max.) |
|
|
|
|
Noise Figure |
0.2dB (Typ.) |
|
|
|
|
Conversion Gain |
58 ~ 60 dB |
|
|
|
|
Gain Flatness 26 MHz Bandwidth |
+/-0.5dB (Typ.) |
|
|
|
|
Polarity Switching Voltage |
VERTICAL: 11.0 ~ 14.0 Vdc |
|
HORIZONTAL: 16.0 ~ 20.0 Vdc |
|
|
|
|
Band Switching |
Low Band : 0 KHz |
|
High Band : 22 KHz +/- 4KHz |
|
|
|
|
Cross-Pol. Isolation |
25 dB (Typ.) |
|
|
|
|
Image Rejection |
40 dB (Min.) |
|
|
|
|
Current Consumption |
80 mA (Typ.) |
|
|
|
|
Output Connector Type |
75 OHMS F-Female |
|
|
|
|
Output Spurious |
<-60dBm |
|
|
|
|
Operating Temperature Range |
-40°C ~ +65°C |
